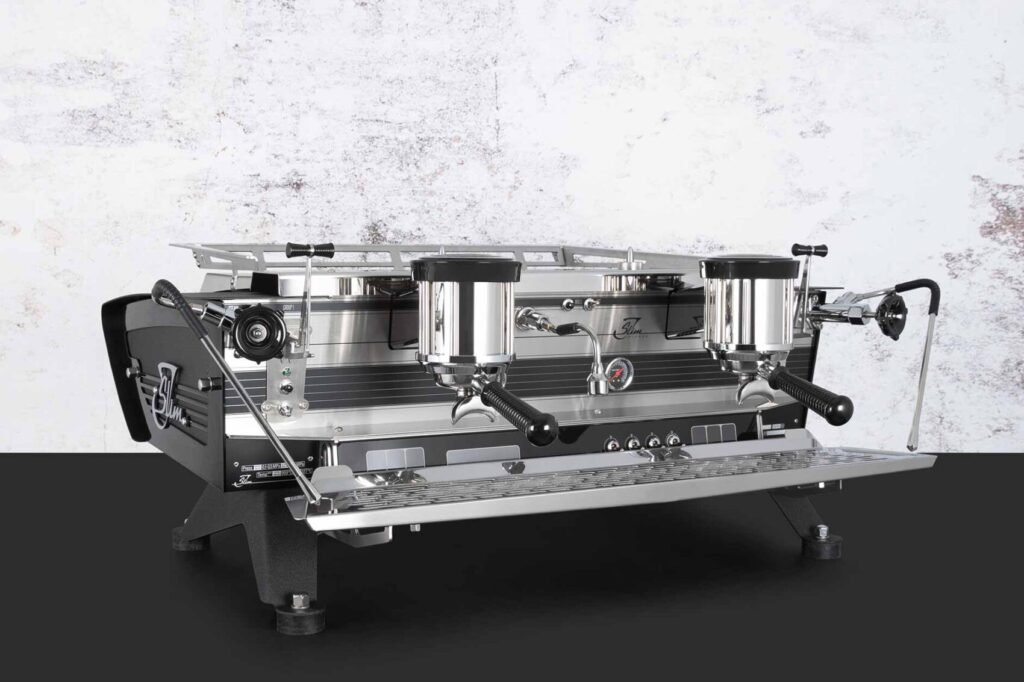

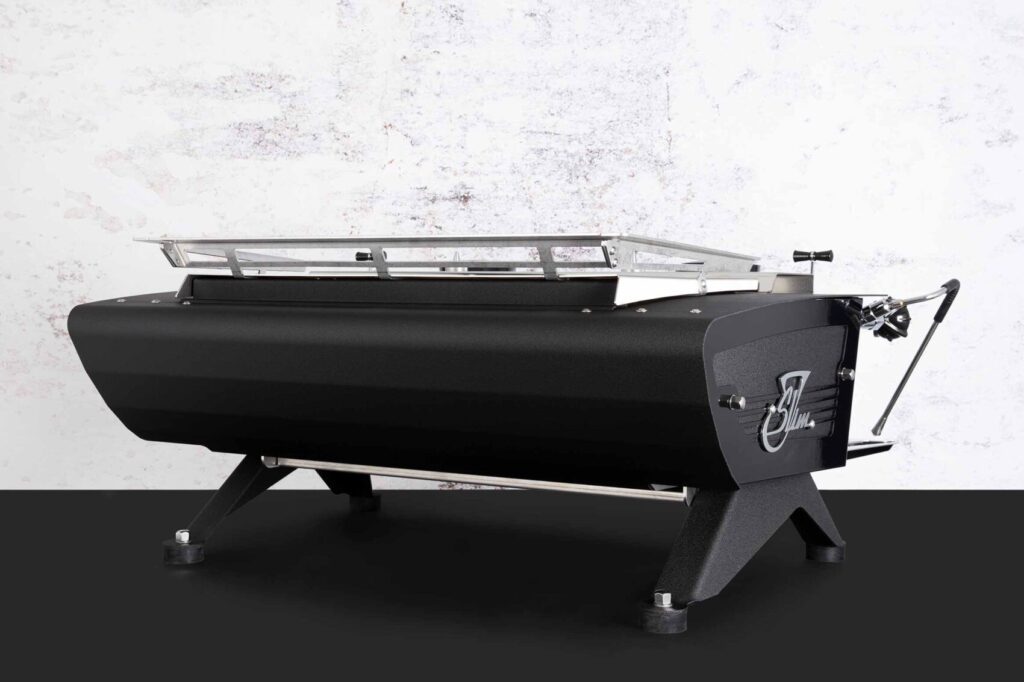

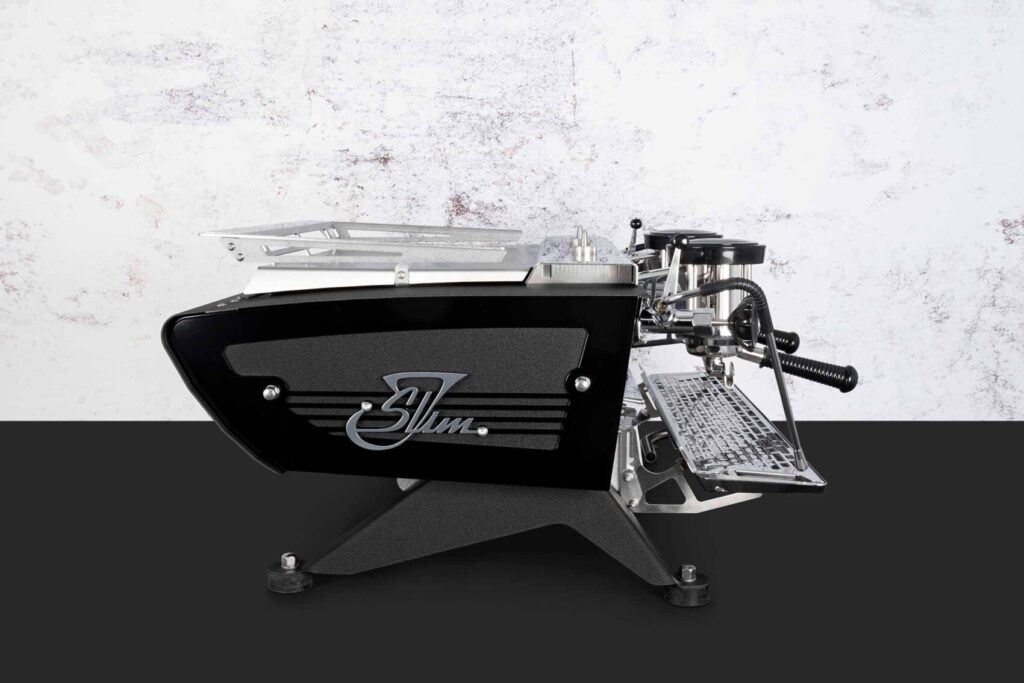

Mirage Slim Jim

  • Description
  • Specification

  • SEPARATE BOILERS

    The Slim Jim is equipped with multiple boilers: one large stainless-steel steam boiler to produce hot water and steam, one stainless steel boiler per group to brew coffee. A heat-exchanger with balanced cross-flow and an electronically controlled cooling circuit ensures
    well-conditioned supply of pre-heated water for the coffee boilers to ensure enormous capacity in a relatively compact machine. Each boiler has its own electronic temperature control system, heating element and safety devices, offering extremely precise temperature stability at high volume.

    Touch Pad

    Each group can be activated with 4 easily programmed volumetric buttons, or a continuous flow button.

    Customisable

    Although the main body has a defined shape, the appearance is easily changed by altering the colour-scheme of body panels, knobs and/or handles, mount different side-panels, legs, front panel, cup rail or a sneeze guard awning. We offer a series of standard colours and side-panels but we appreciate retail-chains as well as individual customers to forward their special wishes to make their machine “one-of-a-kind”.



    Options

    Foot activated steam valves may be added for even quicker service. A -barista adjustable- cup heating mat can actively warm cups which may be protected from customers by a sneeze-guard. For even more systems control, an external temperature probe can be connected to the machine while the measured temperature can be read from the machines’ display. The bastones can be replaced with touchpads that offer 4 adjustable volumes per group.

  • QUICK SPECIFICATION SHEET



    ELECTRIC MAINS



    Kees van der Westen Slim Jim

    Kees van der Westen Slim Jim


    DIMENSIONS

    Approximate dimensions and footprints of the Slim Jim are shown in the illustrations. The black circles are the anti-vibration feet. Please note the dimensions are the same for the Duette and Triplette.

    The optimal countertop feedthrough is 60mm (2.4″). Note that the steam wands will protrude a few centimeters on the left and right side.

    WEIGHT

    The countertop should provide a solid base to carry the full weight of the machine: roughly 125kg for both the Duette and Triplette.

    NOTES

    Water supply from a water treatment system should be within 1.5m (5ft) of the machine. The water supply hose that comes with the machine has a half ball at the end of the 3/8″ nut connector. Discharge should not be further away than 1.5m, have an internal diameter of at least 32mm (1″ 3/8) and should be fitted with a trap. There must be space nearby to locate the water pump with its electrical motor.
